CIO-Approved Monitoring Device

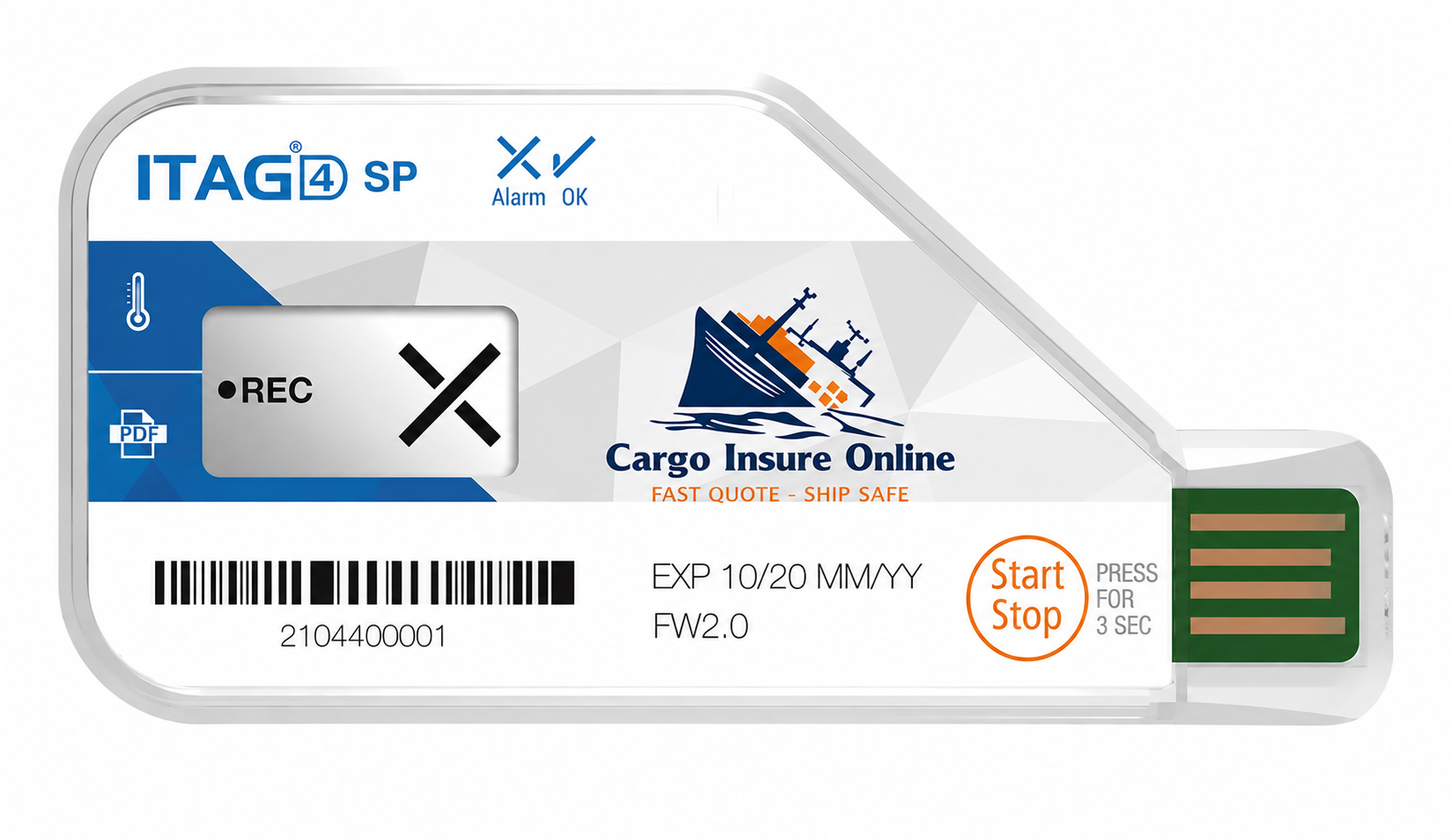

ITAG®4 SP
Single Use USB PDF Temperature Data Logger
The ITAG®4 SP is the temperature monitoring device approved by CIO | Cargo Insure Online for use with the Airfreight Temperature Integrity Coverage. Attach one to every shipment before departure — it records the full temperature history, auto-generates an encrypted PDF report on arrival, and provides the objective sensor evidence that forms the basis of any temperature claim under CIO's policy.
ITAG®4 SP by TempSen Europe
Why this device is required
01
Activate before departure
Press the Start/Stop button for 3 seconds before packing. The ITAG®4 SP begins recording temperature at the configured interval. Confirm the LCD shows the running status before sealing the shipment.
02
Travels with your cargo
The logger records continuously throughout the entire journey — land pickup, airport ground handling, flight, any transit connection, and final delivery — for up to 120 days. No action required during transit.
03
Plug in and download on arrival
Connect to any USB port at destination. An encrypted PDF report is generated automatically — no software, no login, no cable. The report contains the full temperature graph, alarm events, statistics, and tabular data. This file is the objective evidence for any CIO temperature claim.
Key features
Auto PDF Report with Embedded Data
Automatically generates an encrypted PDF report — no software required to open it. Includes recording summaries, statistics, alarm information, a temperature graph, and full tabular data. Embedded raw data can be further processed via TempSen Cloud or third-party systems.
Built-in USB Connector
Plug directly into any PC or USB port — no cable, no reader, no adapter. Instantly download your complete temperature record anywhere in the world.
Software-Free Online Configuration
Configure the logger online before departure without installing any software. Set alarm thresholds, logging interval, and start mode from any browser on any device. Multi-platform compatible.
LCD Status Indicator
The LCD screen shows alarm and running status at a glance — OK, Alarm, or Recording. Immediately visible during packing and inspection. No ambiguous blinking LEDs.
120-Day Battery Life
The 3.0V lithium battery lasts up to 120 days — long enough for air cargo, sea freight, and complex multi-leg supply chains without replacement.
Safe for Air Transport
Certified for use in aircraft holds. Complies with IATA PI970 II and RTCA DO-160G. No restrictions on passenger or cargo aircraft.
Technical specifications
| Usage type | Single use |
|---|---|
| Sensor | Internal NTC temperature sensor |
| Measurement range | −30°C to +70°C (−22°F to +158°F) |
| Accuracy | ±0.5°C / ±0.9°F |
| Resolution | 0.1°C / °F |
| Memory capacity | 10,080 readings |
| Logging interval | 1 minute to 2 hours (configurable) |
| Logging mode | Start & Stop |
| Start mode | Manual or Auto start |
| Alarm ranges | High alarm and low alarm (configurable) |
| Display | LCD — shows OK, Alarm, and Running status |
| Battery | 3.0V lithium |
| Battery life | 120 days |
| Shelf life | 2 years |
| Connection | Built-in USB |
| Report format | Encrypted PDF with embedded raw data |
| Software (optional) | TempCentre Data Management Software |
| Compatible OS | Windows 7 / 8 / 10 |
| Calibration | Factory sampling 6-point calibration (AQL 0.25) |
| Protection class | IP65 |
| Certifications | CE · RTCA-DO160G · IATA PI970 II · RoHS · FDA 21 CFR 11 (with TempCentre 2) · GxP Compliant · Manufacturer's Validation Certificate |
| Dimensions | 93 mm × 45 mm × 8 mm |
| Weight | Approx. 25 g |
| SKU | IT4SP |
How to use the ITAG®4 SP with your CIO policy
01
Configure online before packing
Use the TempSen online configuration utility to set alarm thresholds matching your commodity's CIO parameters — for example 0°C / +2°C for fresh salmon, or +2°C / +8°C for pharma. Set a logging interval of 5 or 10 minutes for air cargo.
02
Place correctly inside the shipment
The ITAG®4 SP must be placed inside the thermal envelope, in immediate proximity to the product. For fresh salmon: between the fillets and the gel packs, not against the outer container wall. The sensor must record the air temperature surrounding the goods — not the packaging surface. Incorrect placement may affect claim validity.
03
Press Start and seal
Press the Start/Stop button for 3 seconds to begin recording. Confirm the LCD shows the running status. Seal the shipment. The logger records continuously until manually stopped or memory is full.
04
Download and submit on arrival
Plug into any USB port at destination. The encrypted PDF generates automatically — no software needed. If a temperature excursion occurred beyond the CIO trigger duration for your commodity and physical damage is present, submit the PDF as part of your CIO claim.
Certifications & compliance
IATA PI970 II
Fully qualified for air transport on passenger and cargo aircraft
RTCA DO-160G
Environmental test standard for airborne equipment
CE Marked
Compliant with all applicable EU directives
RoHS Compliant
Free from hazardous substances per EU RoHS directive
FDA 21 CFR 11
Electronic records compliant (with TempCentre 2 software)
GxP Compliant
Suitable for pharmaceutical and regulated cold-chain use
IP65 Rated
Dust-tight and protected against water jets
Ordering information
Sold in boxes of 20 units — €328.00 per box (€16.40 per unit). Available in multiple temperature ranges — select your range when ordering. Orders fulfilled directly by TempSen Europe, CIO's approved hardware partner based in The Netherlands.
Ready to protect your temperature-sensitive airfreight?
Activate your ITAG®4 SP, attach it to your shipment, and get your Airfreight Temperature Integrity Coverage from CIO in under 60 seconds. Every claim backed by real sensor data — no guesswork, no disputes.
